| Magnification: | 12x |
| Objective Lens Diameter: | 60mm (2.36") |
| Focal Length of Objective Lens: | 228.11mm (8.98") |
| Angular Field of View: | 5.3° |
| Linear Field of View (@1000 yds) / @1000 m): | 278 ft (92 m) |
| Exit Pupil: | 5mm (.2") |
| Eye Relief: | 17mm (.67") |
| Close Focus: | 59 ft (18 m) |
| Interpupillary Distance (max): | 72mm (2.83") |
| Interpupillary Distance (min): | 56mm (2.20") |
| Diopter Adjustment Range: | -4 to +8 |
| Twilight Factor: | 27 |
| Relative Brightness: | 25 |
| Limiting Stellar Magnitude: | Ideal: 11.39 | Moderate: 10.39 | Poor: 9.39 |
| Lens Coatings: | Multi-Coated |
| Prism Glass (Type): | BaK-4 |
| Prism Coatings: | N/A |
| Weight: | 39.2 oz (1111 g) |
| Environmental Protection: | Water Resistant |
| Nitrogen Filled: | No |

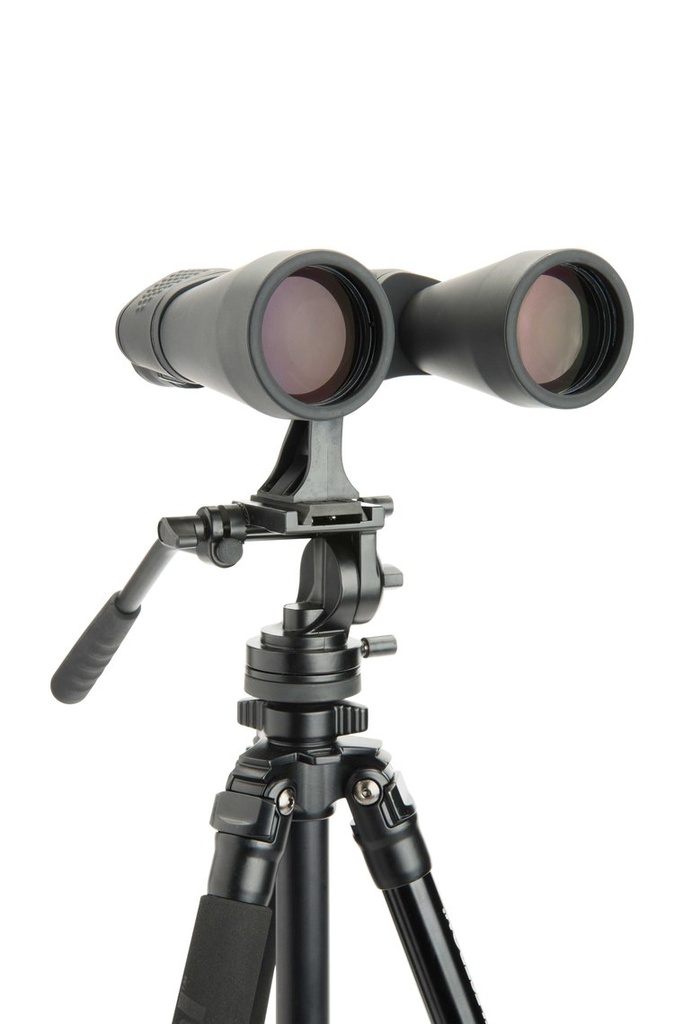

| Tripod Adaptable: | Yes |

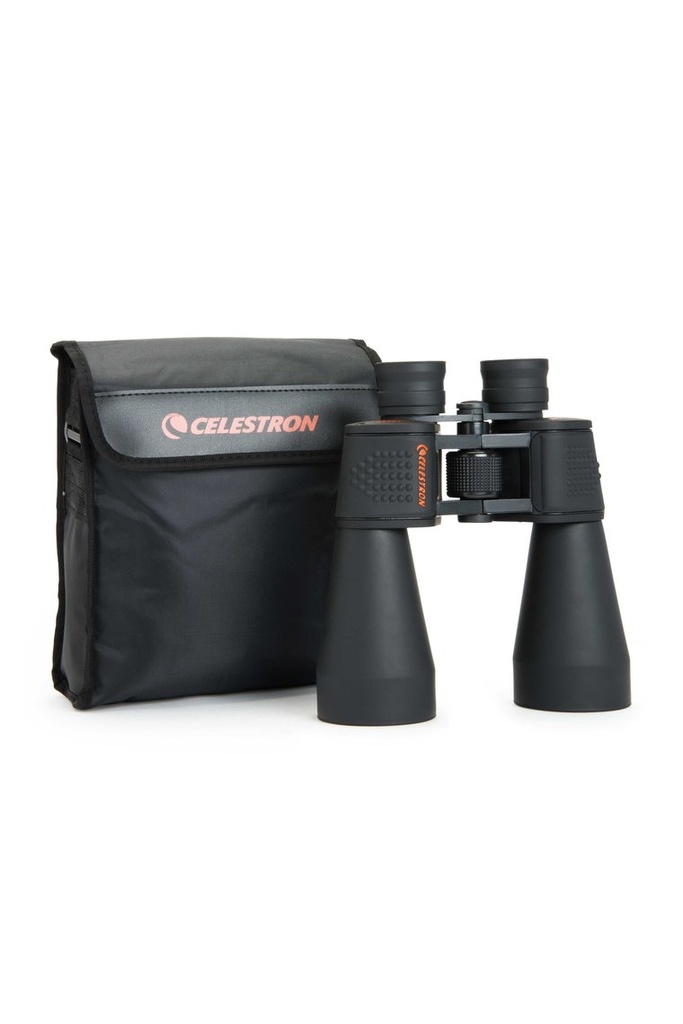

| Carrying Case: | Nylon |
| Dimensions: | 210mm x 206mm x 72mm (8.25" x 8.1" x 2.8") |

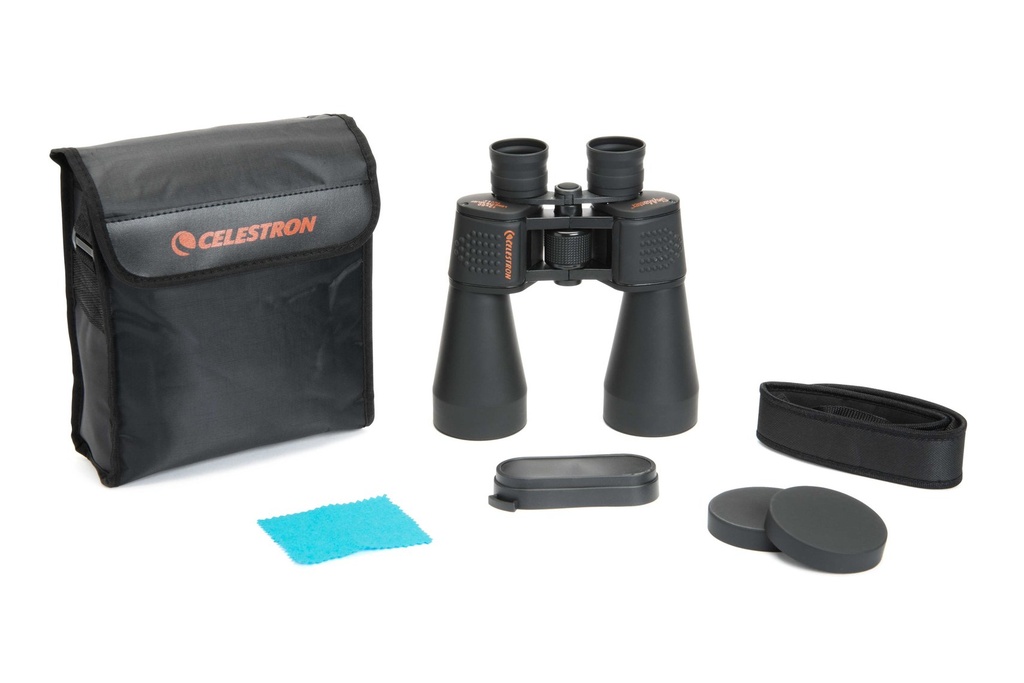

| Included Items: | Objective lens cap
Rainguard
Carrying case
Neck strap
Lens cloth
Instruction manual |
| Solar Warning | - Never look directly at the Sun with the naked eye or with this optic. Permanent and irreversible eye damage may result.
- Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it.
- Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present.
|
