Product Description
Camera Sensor
ASI120 camera integrates AR0130CS 1/3″ sensor (4.8 mm x 3.6 mm). This camera has 1280 x 960 pixels. The pixel size is 3.75 μm x 3.75 μm. This camera provides 12bit ADC.
Astrophotography Performance
ASI120S is a lightning-fast and sensitive USB3.0 camera. Up to 60FPS under 1280X960 full resolution! With a peak QE of 75%, beyond ICX618 and with no FPN(Fixed pattern Noise)! Long exposure supported up to 1000s! Full compatible with USB 2.0 USB Host!

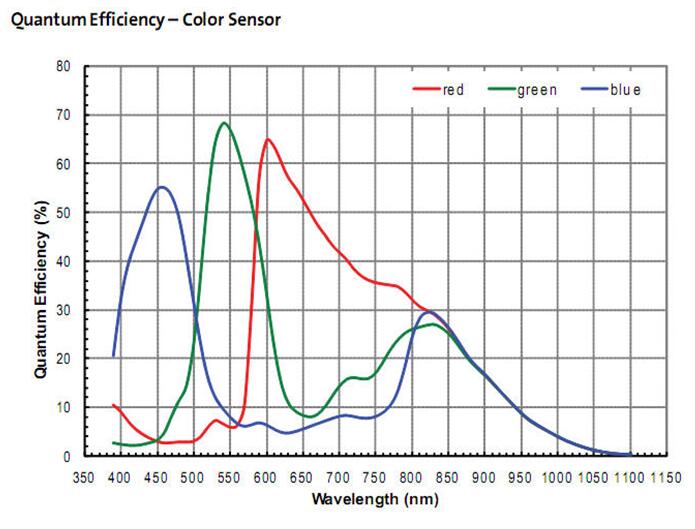

Absolute QE Curve
USB 3.0 Port & ST4 Port
USB 3.0 Port: Can provide 5Gb bandwidth to let ASI120S run at 60 fps (10bit, high speed mode) at full resolution(1.2Mega).
ST4 Port: Can be used connect with auto guide port of mount, for guiding.

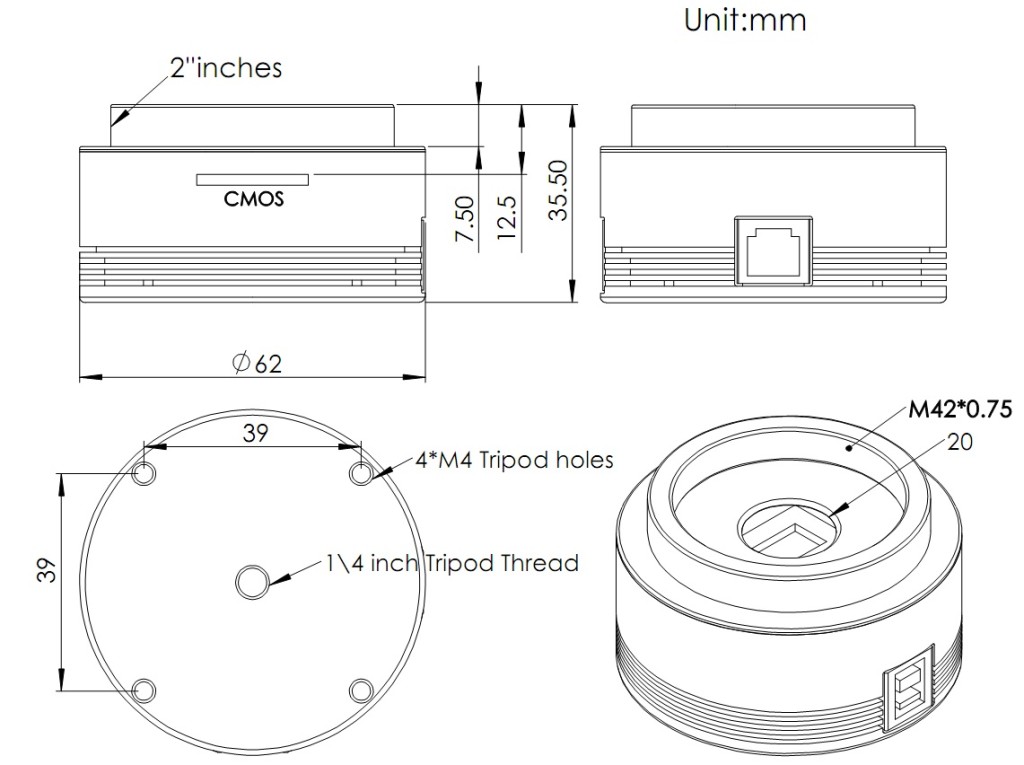

Mechanical Diagram

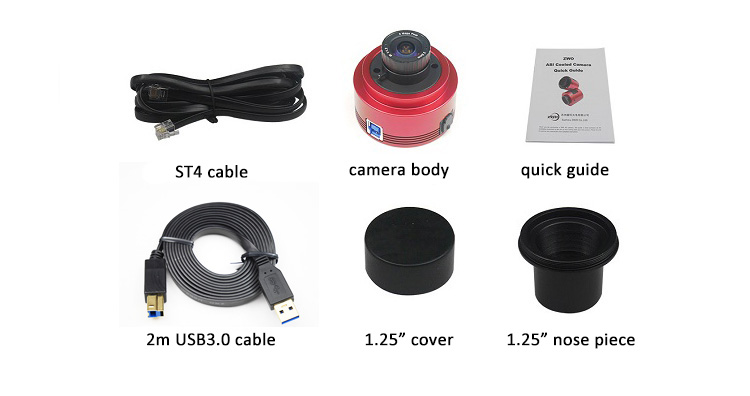

What is in the box?
Camera technical details
Sensor: 1/3″ CMOS AR0130CS(Color) / MT9M034(mono)
Resolution: 1.2Mega Pixels 1280×960
Pixel Size: 3.75µm
Bayer Pattern: GRBG
Exposure Range: 64µs-1000s
ROI: Supported
Non-volatile memory/On camera storage: Build-in total 192K byte user-accessible space(image size up to 480X320)
Interface: USB3.0/USB2.0
Bit rate: 12bit output(12bit ADC)
Adaptor: 2″ / 1.25″ / M42X0.75
Protective window: IR-CUT filter
Dimension: φ62mm X 28mm
Weight: 100g
Working Temperature: -5°C—45°C
Storage Temperature: -20°C—60°C
Working Relative Humidity: 20%—80%
Storage Relative Humidity: 20%—95%
Supported resolution
Binning 1×1:
1280X960@60FPS
1280X720@98FPS
1280X600@116FPS
1280X400@168FPS
960X960@74FPS
1024X768@90FPS
1024X400@160FPS
800X800@85FPS
800X640@106FPS
800X480@141FPS
640X480@133FPS
512X440@145FPS
512X400@158FPS
480X320@196FPS
320X240@254FPS
Binning 2×2:
640X480@45FPS
*Tested under USB3.0 port without overclocking. There is an option to overclock 30% of the current fps
Our website is always updated with the most recent camera drivers as well as software for DSO and planetary imaging. Please make sure the most recent driver and software has been installed before you start shooting:
It is also recommended to read the Manuals first before shooting.
