- 4 x 12V DC Power outlets for your equipment (A single channel to switch all four outputs ON/OFF via software)
- 12 Amps of total distributed current
Adjustable Output (3, 5, 7, 8, 9, 12Volt) / 3Amps (Can be switched ON/OFF) Power your DSLR / Mirrorless camera
- Embedded Powered USB3 Hub – 2 x USB3 Ports & 2 x USB3 Ports Available (USB3 ports are backwards compatible with USB2 devices)
- 1 x Power USB Port (up to 3Amps) – Suitable for Raspberry PI 3/4 power
EXT Port (RJ12) for external accessories (E.g External Focus Controller)
2 Channels PWM Dew Heaters – RCA Outputs (Adjust power levels via software)
- Humidity and Temperature Sensor (included)
- Auto Tune Dew Heater Channels
- Reverse Polarity Protection
- USB / PC Controlled or Standalone Operation out of the box
- Lightweight and extremely compact aluminium enclosure

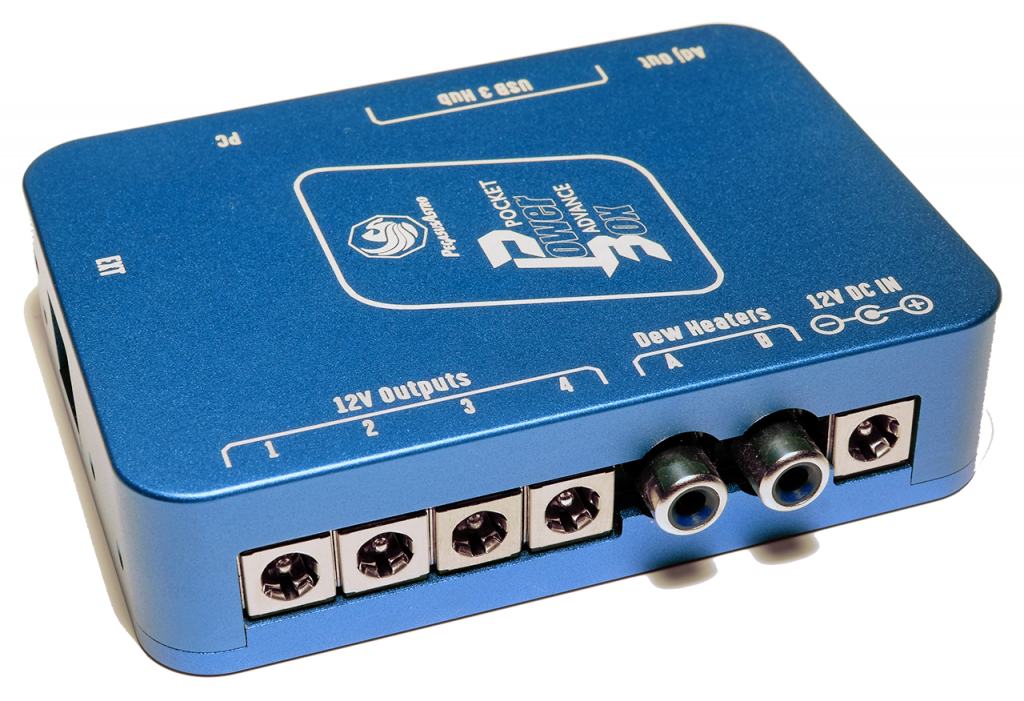

4 x 12V DC
Power outlets
A powerful mosfet transistor provides “electric juice” to your precious equipment. It supply of electricity 4 outputs. Can switch on/off all 12V outputs (not individually).
This single channel can provide up to 10Amps of current to all ports. Current is shared among the 4 x 12V ports
Built in
Voltmeter
A precise voltmeter measures and displays in real time your input voltage. If the input is more than 14.5V, the power is instantly cut off to protect your equipment.
Adjustable
Regulated Output
An adjustable output is suitable to provide power to your DSLR / Mirrorless camera / or your RPI3/4. You can tune the voltage to different levels (3,5,8,9,12 Volts). Please note that we provide a wide range of battery couplers for Canon, Nikon, Sony, FUJI Cameras
Built in Amp-meter
An Amp-meter placed after the DC input reports the total electric current.
There are also three additional amp-meters: One for the 12V outputs and two for the Dew Heater Channels. This allows you to easily monitor the detailed and overall power consumption of your equipment.
More than 12A of total electric current
The powerbox has been designed to output up to 12 Amps of electric current. Please note that a usual backyard astrophotographic setup requires 5-7 Amps

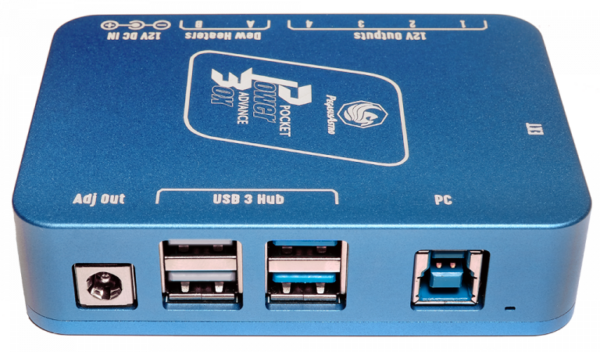

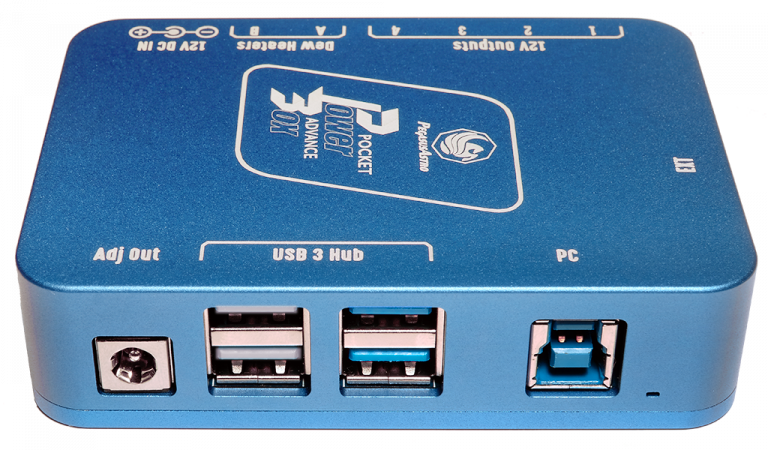

Embedded USB3 Hub – 2 x USB3 & 2 x USB2 Ports
A powered USB3 Hub at the back of the device provides:
- 2 x USB3 SuperSpeed Ports
- 2 x USB2 High-Speed Ports.
The new SuperSpeed hubs operate in parallel with the USB 2.0 controller, so 5 Gbps SuperSpeed data transfers are not affected by slower USB 2.0 traffic.|

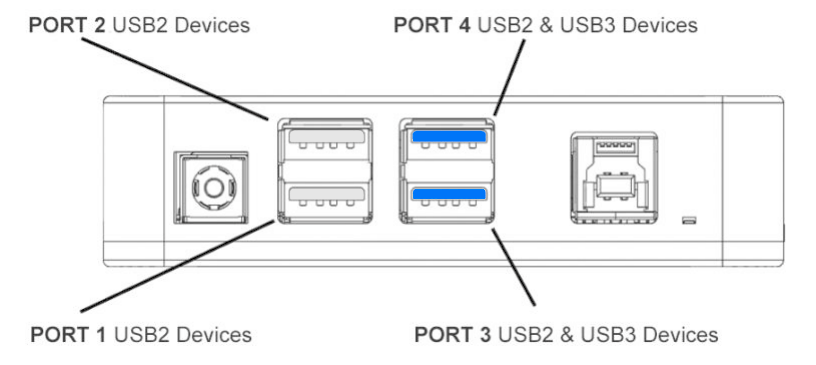

USB Port Configuration under PPBADV Gen2
- USB Port1 supports USB2 devices
- USB Port2 supports USB2 devices
- USB Port3 supports USB2 & USB3 devices
- USB Port4 supports USB2 & USB3 devices
* Older product revision (Gen1) had only 3 out of 4 USB Ports that were compatible to USB2 devices. For detailed information please check the product manual.
USB High Power Output
USB Port 1 provides up to 3Amps of current. You can connect any device that requires 5V. E.g a Raspberry PI 3/4 or Intel Compute Stick M3/M5 can receive power from this specific port.

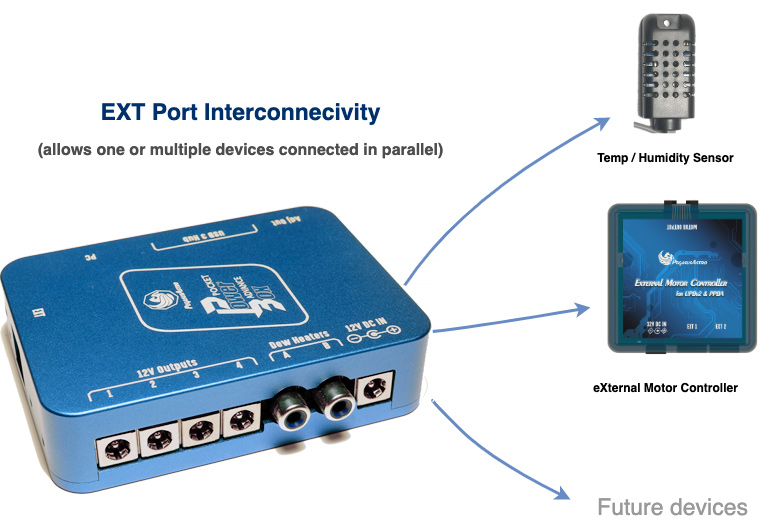

Expansion Port (EXT)
EXT (expansion) port is available for device expansion. This RJ12 socket allows the connectivity of current and future Pegasus Astro products. Plugged devices can be controlled from Pocket Powerbox Advance standalone software or dedicated ASCOM driver.
Other Key Features
Standalone Operation
“out of the box”
Pocket Powerbox Micro can work “out of the box” as a standalone device. Just plug the cables, setup the “autodew” functionality and every time you boot the device, it will retrieve your settings. So, If you don’t like to connect to a PC every time, you don’t have to. Simple as that!
Two channel duty cycle
PWM outputs
Two Pulse width modulation (PWM) outlets are capable to provide power to your “thirsty” Dew Heaters. No more moisture fuzzing your equipment and destroying your clear nights. These outlets can be remote-controlled from your laptop using the supplied software.
Auto Adjustment of
PWM (Dew Outputs)
Controller can auto adjust the heater power levels by consulting the environmental sensor Dew Point reading. Just click “Auto” and leave to Pocket Powerbox Micro to decide if it is time to turn on and precise tune the level of your dew heaters.
More than 10A of
total power
Controller has been designed to support up to 10 Amps of total current.
Led Indications for power and failure states
Led can blink in patterns to warn you regarding important power issues (e.g over or under voltage). Moreover light can be turned off using the software. Our led is very dim but in case you don’t like it on you can switch it off via the software.
Reverse Polarity Protection
Pocket Powerbox Micro has been design with a reverse voltage polarity protection. It will definitely save your night if you accidentally connect the main power supply in reverse polarity!
A hardware
watchdog
A hardware watchdog resets the device if for any reason there is no response from the controller for two seconds. A neat feature in the unlikely event of a controller freeze – when you have a remote observatory and you need to be certain that everything works as expected.
Upgradable
Firmware
Device is firmware upgradable to support future features and bug fixes.
Compact Aluminium Enclosure
A high-quality robust, blue anodized aluminum enclosure houses the electronics of the Pocket Powerbox Advance.
Size is 100mm x 71mm x 24mm. Weights 250 grams.
Supported By
ASCOM 6 Fully supported
Pocket Powerbox Advance fully supports ASCOM6. In combination with our main program which acts as a server you can use our latest ASCOM 6.5 supplied drivers to:
- Report environmental settings to supported software (e.g Sequence Generator Pro / MaximDL ) (ASCOM ObservingConditions)
- Switch ON / OFF 12V outputs, Adjustable Output, Tune Dew Heaters. (ASCOM Switches)
INDI Fully supported
Pocket powerbox fully supports INDI, Bundle it with Stellarmate or any other device that can use INDILib.
Unity Platform Support

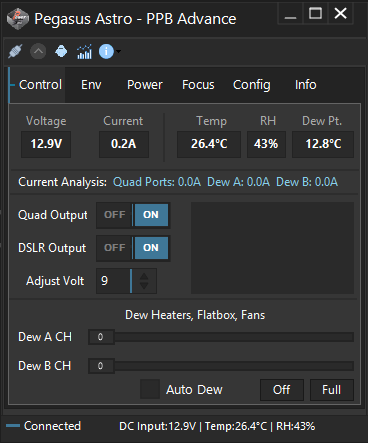

Pegasus Astro Unity Platform is our new all around application. Our goal is to provide a robust and modern application that is going to support current and future products under one roof.
1 x Pocket Powerbox Advance Controller
1 x Temperature / Humidity Sensor
4 x Power DC 2.1 to 2.1 male cables

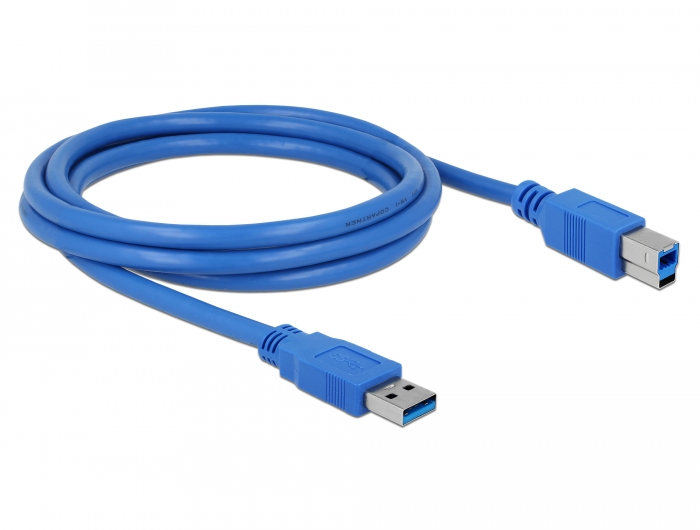

1 x USB3 Cable
Type B (1.8m)
| Brand | Pegasus Astro |
