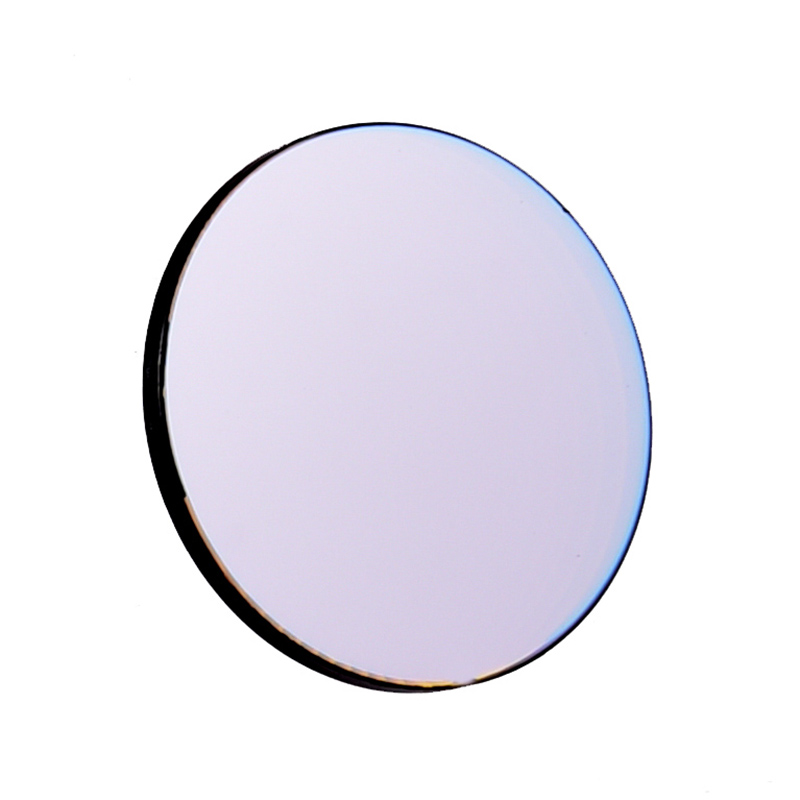

Antlia 3nm Narrowband Oxygen III (OIII) Pro Filter - 36mm Unmounted

SKU ANT-OIII3nDia36m
Size 36mm Unmounted

Application and Performance:

  • High transmittance and smallest bandwidth to maximize contrast
  • Steep spectral profile minimizes halos around bright stars
  • A single substrate to eliminate internal reflections
  • Narrowband Objects: OIII Emission Nebulae, Planetary, Wolf Rayet Nebulae and Supernova Remnants
  • Use in light polluted areas and dark sites
  • Extends imaging time when the moon is up
  • Antlia narrowband Pro filters can be used down to f/3 systems with minimal loss of signal
  • All Antlia unmounted narrowband filters are edge blackened to eliminate internal reflections from stray light
  • Superior optical reliability reduces post image processing
  • This filter is only effective for deep sky objects that contain OIII emissions
119.000 KD 119.000 KD

  • Brand - Antila

Basic Substrate: optical substrate

Filter Thickness:   2mm+/-0.05mm for Dia36mm unmounted

FWHM (Full width at half maximum): 3nm

CWL (Central Wavelength): 500.7nm

Peak Transmission: >85%

Blocking: > 5 OD(0.001% out of band blocking) @ 300-1000nm

Surface Quality: S/D (scratch/dig)= 60/40 (Refer to MIL-O-13830)

Transmitted Wavefront: Lambda/4 or better.

Parallelism: less than 30 arcsec

Single / Non-glued substrate

Not Recommended:

Solar Observing and imaging

Visual observation

DO NOT LOOK AT THE SUN WITH ANTLIA FILTERS.

Serious eye damage will result if you fail to observe the warning.




When we design filters for astronomy imaging systems, we look at how they will work together with optical systems, carefully designing the blocking and bandpass parameters to achieve an optimum result. The out of band blocking rate is a very important performance index since it is designed to sharply attenuate off band wavelengths. The result is that the Antlia OIII 3nm Pro filter delivers excellent contrast with extremely dark backgrounds whilst delivering a high transmission of the OIII signal. Such filters are more difficult to produce to a consistently high standard.

Each filter is individually tested and scanned to ensure that the quality meets the high performance parameters. The end result is a filter that achieves excellent contrast but with a higher production cost. We believe the price to performance ratio compares more favorably than similar premium filters in the market.

Due to Covid impacts, current stock and ongoing supplies will remain intermittent.
